ULC

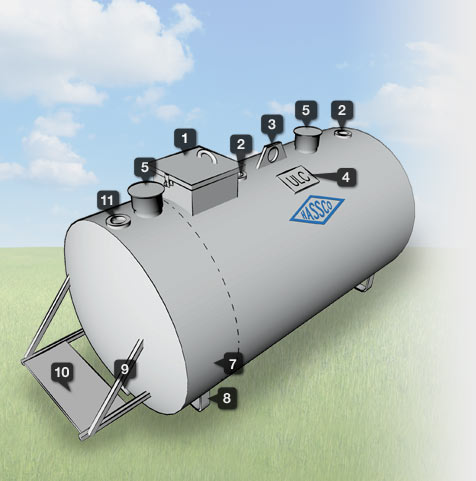

Double Wall (non-vacuum) Utility Tanks

  1. Lockable Spillbox
  2. 2” Threaded Fitting
  3. Lift Lug
  4. ULC Label
  5. Emergency Vent
  6. 1” Bottom Outlet
  1. Containment Area
  2. Legs
  3. 1” Drain (npt) Plugged
  4. Access Step
  5. Inspection Port (2” Vented)
Double Wall (non-vacuum) Utility Tanks
MaterialCapacity DiameterLengthWeight
14 450L (100gal) 29” 48” + 8” 300lbs.
14 1100L (250gal) 38” 60” + 8” 450lbs.
14 1360L (300gal) 38” 72” + 8” 500lbs.
12 2200L (500gal) 50” 72” + 8” 1200lbs.
12 4500L (1000gal) 50” 144” + 15” 2400lbs.

* Tank + 10% Containment

General Information

HASSCO’s ULC approved steel double wall “contained” tank offers innovative and virtually maintenance free fuel storage. HASSCO’s Contained Tank is a double wall tank that meets all secondary containment requirements without having the requirement of vacuum monitoring. Best suited for applications where continual monitoring may not be ideal and applications where tanks might be moved from site to site. These tanks are industry proven, and are the latest, easiest way to store various fresh fuels. Tanks include 4 threaded openings, a fill cap, emergency/normal venting and a lockable spill-box incorporated into the design of the tank. All HASSCO tanks come with our standard coating beginning with epoxy primer and 2 coats of enamel finish in a colour of your choice!

Inquire about this Product

Downloads

Here are the downloads available for our line of Double Wall (non-vacuum) Utility Tanks

Spec Sheet
Dip Chart

Options

  • Tank gauges, alarms, heaters and pumping systems
  • Premium Coating
  • Interior linings
  • Available in a variety of sizes and configurations.

Sizing

  • Upto 50000L

Conformity

  • ULC
